Oil well monitoring system
Author: From: Add Time: 2025-03-11 11:05:32

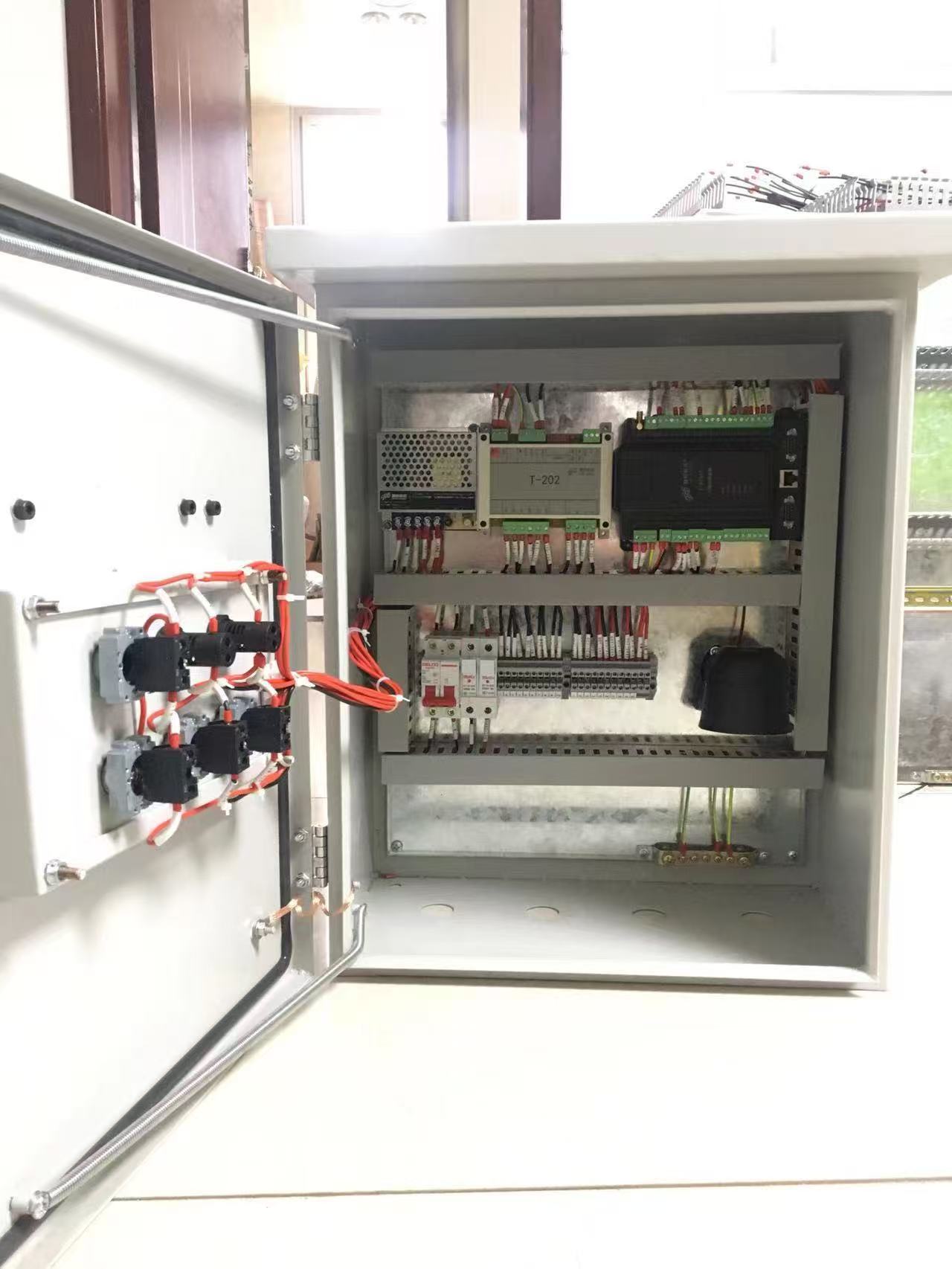

• Including RTU, electrical parameter module, switch power supply, air switch, lightning arrester, toggle switch, voice broadcast
• Built in ZIGBEE wireless module (option)
• Built in sound card, power amplifier, speaker
• Indicator diagram acquisition, three-phase electrical parameter acquisition, remote control,intermittent control
RTU

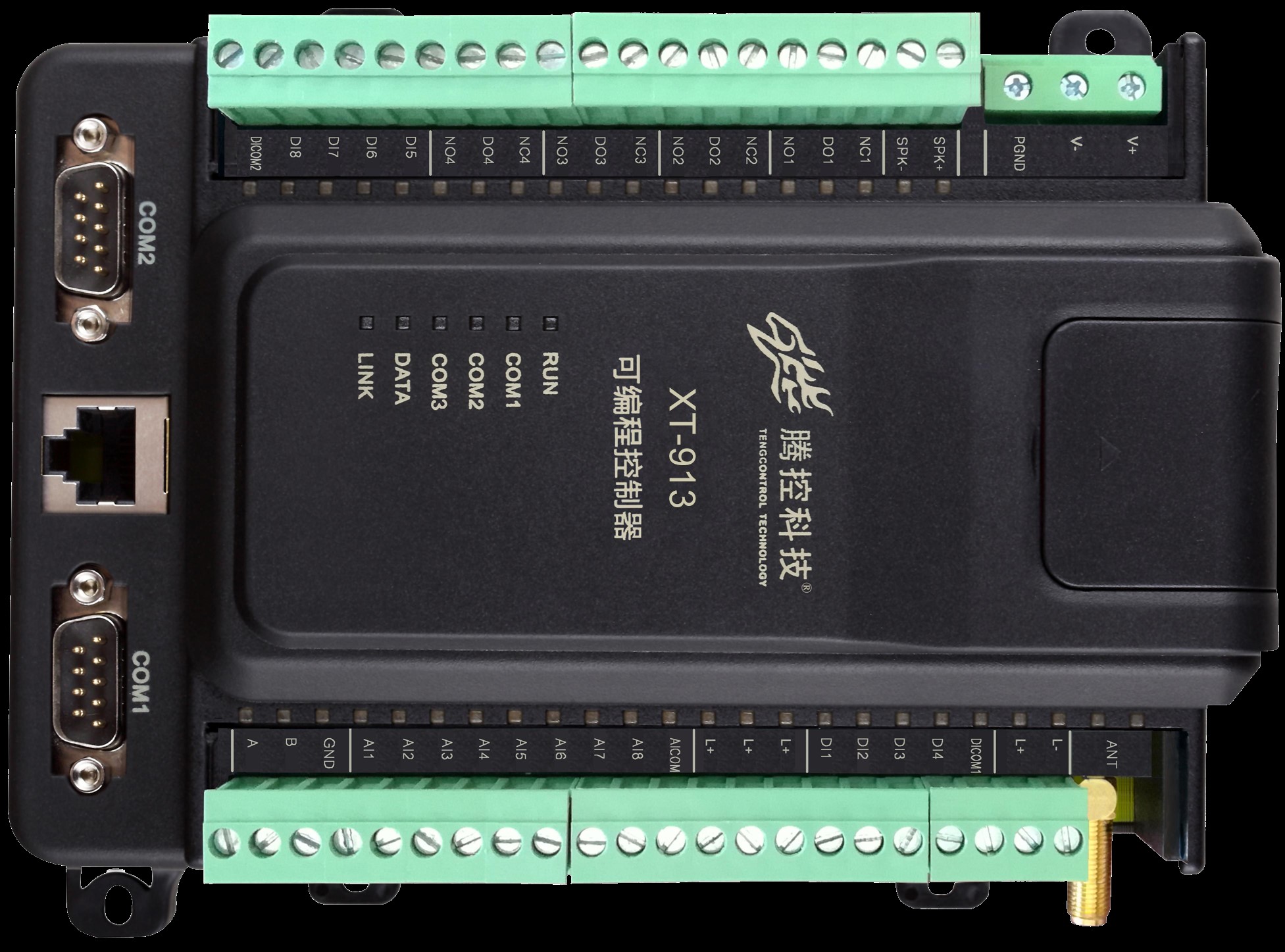

• Equipped with A7 dual core processor, with a maximum clock speed of 1.2GHz, 128MB of memory, and 8GB of FLASH
• 3 serial ports, 1 network port
• Sound card+25W amplifier
• 8AI/8DI/4DO
• Built in ZIGBEE and well site RTU communication (option)
• indicator diagram, power curve, and current curve collection
• Motor protection
• Web management
• The built-in trained 1DCNN neural network model can identify common working states of oil wells through dynamometer curves and power curves, including but not limited to normal operation, insufficient liquid supply, accompanying gas influence, gas lock, pump collision, valve closing delay, plunger disengagement, floating valve leakage, fixed valve leakage, belt breakage, belt slippage, etc
Electric parameter module

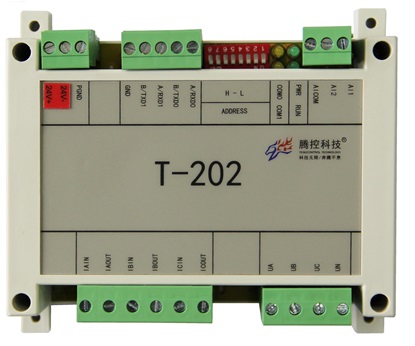

• Collect and calculate three-phase voltage/current/active power/reactive power/frequency/power factor, etc
Four quadrant cumulative electrical energy
• Motor protection
• RS485 and RTU communication
• ZIGBEE module(option)
• Switching power supply
• Speaker
• Intermittent instruction
• External 4G/5G communication module (option)
• External current transformer
• and so on
Result
The modified plan has been widely applied in oil fields due to its advanced technology, simple structure, and easy facilities, achieving very good energy-saving effects
